Conesys # D38999/20ZG39AN

Buildable: 264 - arrives in 2-3 weeks

Built to order, date code new

Conesys Aero-Electric MIL-DTL-38999 Series III

# 264 arrives in 2 to 3 weeks; Manufacturing lead time: 10 weeks

Manufacturer

Conesys

Powell Material Number

1001615512

Product Category

D38999 Series III Military Circular Connector

Factory Lead Time: 10 Weeks, MOQ: 1

Quantity

Price (INR)

1 ₹10,721.25
5 ₹4,649.78
10 ₹3,873.69
25 ₹3,406.51
50 ₹3,250.14
100 ₹3,308.66

Packaged individually in bags

*All prices shown are exclusive of GST.

MOQ - 1 ₹10721.25
Secure Checkout Certified Distributor

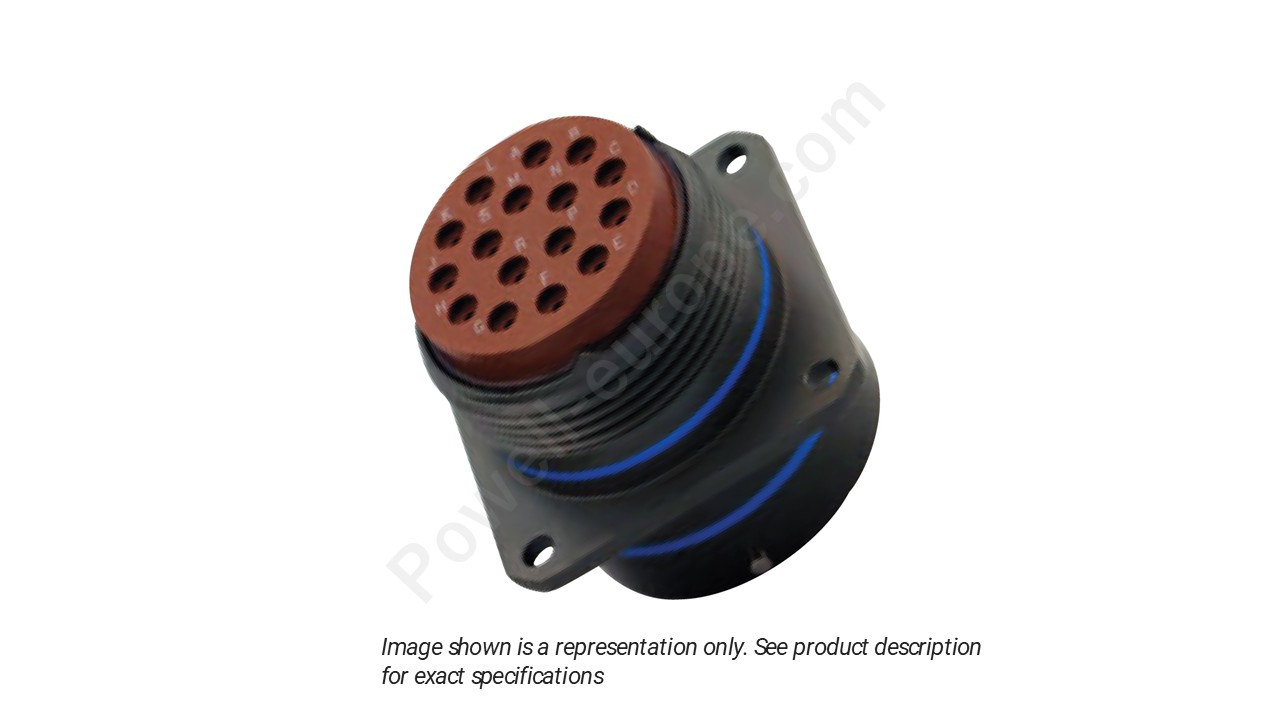

Image representing the style and polarization of the Conesys D38999/20ZG39AN
Front View
Technical

Downloads

2D drawing catalog extract Insert arrangements Full Conesys D38999 Catalog 0 0 0 0 0 0 0

Specifications

Technical Specifications

gender and shell Receptacle
mounting Wall Mounting
material Aluminum
finish Zinc-Nickel
contact type Connector supplied without contacts suitable for pins
contact termination No contacts supplied
number of contacts 39 (37 x size 20 contacts & 2 x size 16 contacts)
compatible wire size #20 - #24, #16 - #20 AWG
shell size 21
insert arrangement G39
service class Z
keyway position Normal

Environmental & Export Classifications

ROHS Compliant Yes
contact test current level 7.5 Amps, 13 Amps
insulation resistance 5000 megohms min. at 25° C to EIA-364-21
dielectric withstanding voltage 1300 Volts AC
hours salt spray 500 hours
min operating temperature -65°C
max operating temperature +175°C
number of mating cycles Mating cycle determined by contacts used
ECCN EAR99
HTSUS 8536694040
